Python API

Send to Unreal was designed to handle the generation of Unreal asset types. However, it does not handle every possible scenario that your production might need. That is why the tool has a programmable python interface that allows the user to set properties and to automate processes before and after the Send to Unreal operation.


All of the properties can be accessed directly on the following scene data object in the blender API.



This scene property data is persistent and stored within your blend file. If your blend file is saved, then the state of your scene properties gets saved into the file as well.

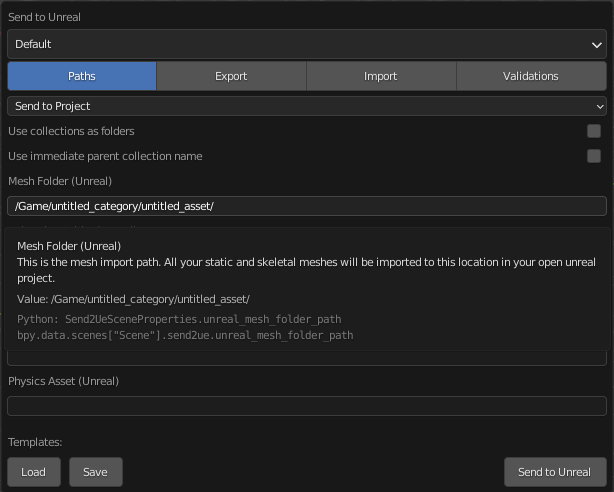

To find the name of the property you want to read or edit, you can use the blender python console and the tab key to list the properties, or open the Send to Unreal Settings Dialog and hover on a property. Under the tool tip you will see the API reference for the desired property.



Operators are just callable methods that have been registered in a submodule of the Blender API. The listed operators should allow you to do anything that is possible to do from the Send to Unreal menu as well as the Settings Dialog.

Send to Unreal

Quickly send your assets to an open Unreal editor instance without a dialog,


Settings Dialog

Open the settings dialog to modify the tool properties,


Import Asset

Import a file that came from Unreal,


Create Pre-defined Collections

Create the predefined collections that are needed for data collection (Export).


Save Template

Saves the current state of the properties to the specified template file.

  • param str filepath The full path of the template file.
bpy.ops.send2ue.save_template(filepath: str)

Load Template

Loads the specified template file into the template folder location.

  • param str filepath The full path of the template file.
bpy.ops.send2ue.load_template(filepath: str)

Remove Template

Remove the settings template that is currently selected as active.


Reload Extensions

Reload the extensions files. If changes are made to the extension code, this should be called to reload the code.


Start RPC Servers

Bootstraps Unreal and Blender with RPC server threads so that they are ready for remote calls.



Change Template Example

Here is how you could automate loading a settings template from a file and making it the active template.

import bpy

# load the file into the template folder location

# set the active template which modifies the state of the properties
bpy.context.scene.send2ue.active_settings_template = 'my_template.json'

Change Properties Example

Here is how you could use Python to dynamically change the mesh import folder of your asset.

import bpy

# set the mesh import folder
folder_name = some_custom_function_that_gets_a_folder_name()
bpy.context.scene.send2ue.unreal_mesh_folder_path = f'/Game/{folder_name}/'

# run send to unreal

The same process can be used to dynamically set any property on the Send to Unreal tool.
